DC Charging

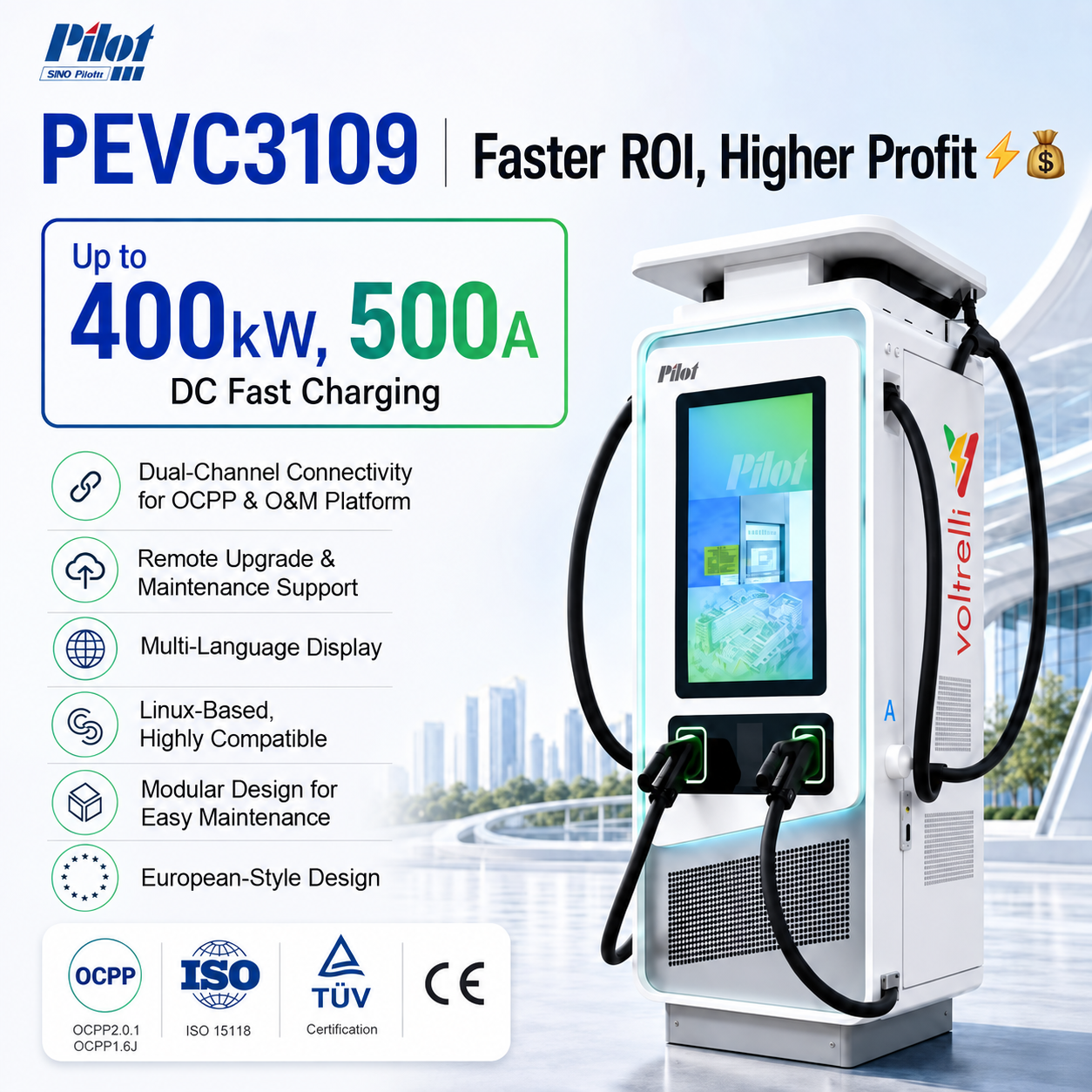

PEVC3109 400kW
The PEVC3109 is a high-power DC fast charger designed for demanding public, commercial, fleet, and highway charging applications. With charging power of up to 400 kW and current up to 500 A, it delivers high-performance charging while supporting a modular design for flexible deployment and simplified maintenance. Its dual charging connectivity and advanced communication capabilities make it suitable for modern high-utilization charging networks.
Power Output
400 kW
Charging Points
2
Connectors
CCS2
Protocol
OCPP 2.0.1
Technical Specifications
Power range
Up to 400 kW
Maximum DC output power
400 kW
Power configuration
Modular design, dynamic power allocation
Output voltage range
150 Vdc – 1000 Vdc (High Voltage support)
Maximum DC output current
Up to 500 A (with liquid-cooled cable)
DC connectors
2 × CCS2
Charging management
Dynamic power sharing / dual-channel management
Installation
Outdoor / indoor
Mounting
Floor standing
Protection rating
IP55
Impact resistance
IK10
Operating temperature
−30°C to +50°C
Efficiency
≥ 95%
Display
10.4 inchi or 7 inchi, color touchscreen (multi-language support)
Communication
OCPP 2.0.1 and OCPP 1.6J
Network
Ethernet / 4G (Dual-channel)
RFID
SO 14443 A/B, MIFARE, DESFire, NFC
Dimensions
DimensionsHigh-power cabinet standard (approx. 800 × 1000 × 2000 mm, configuration dependent)
Weight
Over 500 kg (varies based on the number of installed power modules)
